A premium bottle package does not always need to follow the shape of the bottle. The custom rectangular hinged wine and spirits bottle tin boxes are designed as presentation cases, giving wineries, distilleries, beverage brands and gift buyers more room for decorative artwork, protective inserts and a more deliberate opening experience. The structure combines a deep rectangular tin body, attached hinged lid, front clasp closure and fitted internal insert for a single bottle. Unlike a removable cylindrical wine tin, the lid stays connected to the body when opened, allowing the customer to see the bottle presented inside the complete package.
Product Name :
Rectangular Hinged Wine and Spirits Bottle Tin BoxesDimensions :
L340*W105*H105mmShape :
Deep rectangular single-bottle presentation caseDesign :
Customizable, ODM / OEMPrinting :
CMYK, Pantone and selected metallic effectsSurface Finish :
Matte, gloss, metallic effects, embossing or debossingMaterial :
0.23 mm Food-Grade TinplateMOQ :
5,000 pcsLead Time :
35 DaysPackaging :
Opp Bag + Master Carton
The main difference between this product and a standard wine bottle tin is the way the bottle is presented.

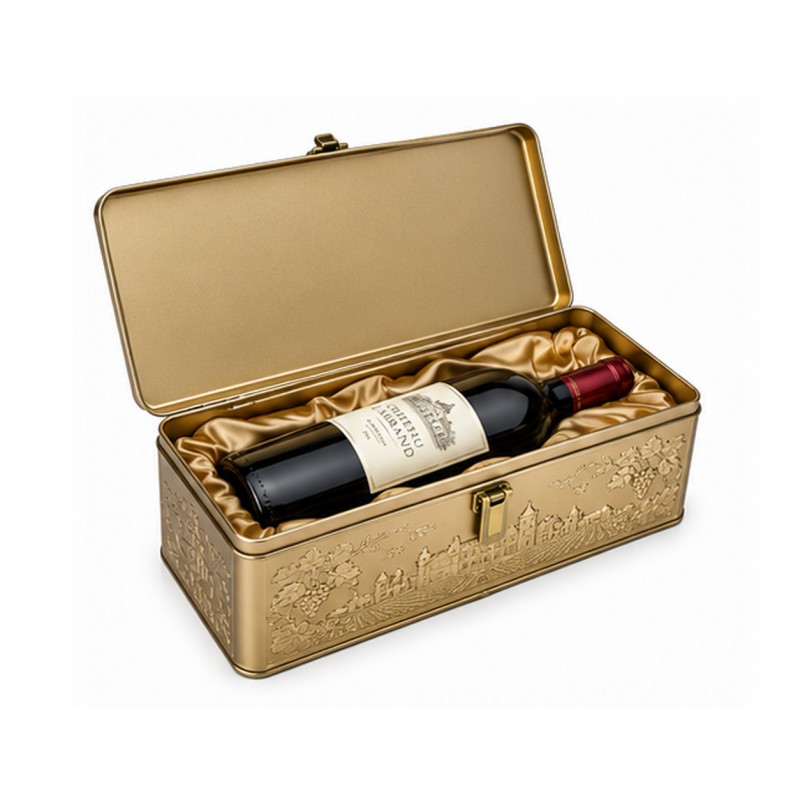

A cylindrical tin surrounds the bottle closely and is opened by removing the top lid. A rectangular wine bottle tin box creates a larger presentation space around the product. When the hinged lid is opened, the bottle remains visible inside a fitted insert and the complete case becomes part of the gift presentation.
This structure is particularly suitable when the buyer wants the outer package to communicate premium value before the bottle is removed.
Typical projects include:
The hinge construction is a functional part of this packaging and should not be treated as a decorative detail.
For this type of rectangular bottle tin, the lid and body are connected through separate formed hinge points along the long rear edge. Metal tabs or hinge ears are stamped and formed into the lid and body structure. Once the corresponding openings are aligned, a steel wire or metal pin passes through the hinge points to connect the two sections.
This is different from attaching a long external piano hinge to the outside of the box.
Two separated hinge positions help maintain lid alignment while leaving most of the rear wall structurally clean. During production, we check that the hinge points remain aligned, that the wire or pin is properly positioned and that the lid can open and close repeatedly without excessive movement.
The hinge structure also needs enough clearance for the lid to reach the intended opening angle without placing unnecessary stress on the formed metal edges.
A long wine presentation tin has a much wider lid than a small mint or card tin. If the connection between the lid and body is poorly positioned, the lid may twist or become uneven when opened.
Using two controlled hinge positions along the rear edge helps distribute the movement more evenly.
During sample approval we pay attention to:
The front closure is another important structural detail of a hinged wine bottle tin box.
The clasp is not one complete fitting attached to only the lid or only the body. The closure normally uses two corresponding components:
When the lid closes, the upper and lower parts meet and the latch engages to hold the package shut.
When the tin is opened, these two parts separate naturally. This means an open-box product image should clearly show part of the clasp on the lid and the matching section remaining on the body.
The clasp may be supplied in a gold, silver or other confirmed metallic finish depending on the artwork and overall package design.
The clasp gives the customer a more deliberate closing action and helps keep the hinged lid in position during normal handling.
However, a firm click from the closure should not be interpreted as an airtight seal.
The hinge points, rolled metal edges and clasp do not normally create a continuous moisture or oxygen barrier. Wine, whisky, vodka and other spirits remain protected by their own glass bottle and closure system.
The tin therefore functions as:
A rectangular metal case naturally leaves more empty space around a round bottle than a cylindrical tin. That extra space needs to be controlled with a fitted insert.
For most premium projects, the insert is designed around the actual bottle rather than using a universal cavity.
The insert can support:
A correctly designed wine bottle tin with insert reduces movement during transport and keeps the label facing the intended direction when the box is opened.
The appropriate insert depends on the bottle weight, presentation level and budget.
Common options include:
Black foam works particularly well with gold or dark-coloured wine tins because it provides strong contrast against the bottle and exterior decoration.
The cavity should hold the bottle securely without making removal difficult. Finger access or additional clearance can be added beside selected areas of the bottle when necessary.
For a rectangular presentation case, we need more than the overall bottle height.
Please provide:
Physical bottle samples are particularly useful for premium insert development because glass bottle shapes can vary slightly from nominal catalogue dimensions.
One advantage of the rectangular format is that it is less dependent on the bottle being perfectly cylindrical.
A wider whisky bottle or unusual premium spirits bottle may be difficult to place inside a narrow metal tube, while a rectangular case can provide additional lateral space and allow the insert to control the shape internally.
| Bottle Type | Why a Rectangular Tin Can Work |
| Bordeaux Wine Bottle | Fits naturally into a long single-bottle presentation layout |
| Burgundy Wine Bottle | Additional internal width can accommodate wider shoulders |
| Whisky / Whiskey Bottle | Custom insert can support round, square or broader bottle profiles |
| Vodka Bottle | Suitable for tall premium bottles with controlled neck support |
| Brandy / Cognac Bottle | Rectangular internal space provides more flexibility for wider bodies |
| Gin / Rum Bottle | Insert can be adapted to different branded bottle silhouettes |

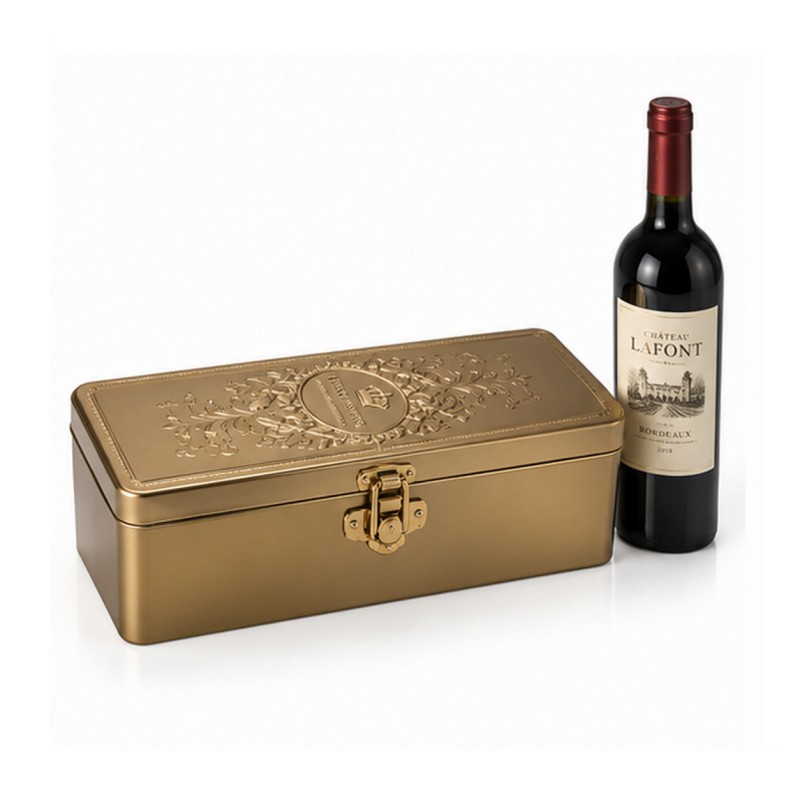

The large flat lid is one of the strongest visual advantages of this packaging.
Compared with printing around a narrow cylindrical wall, a broad rectangular surface gives designers room to create a more elaborate composition.
Suitable embossed elements include:
For luxury wine packaging, embossing can extend beyond one central logo. Carefully planned raised patterns across the lid can make the metal surface feel more decorative and collectible.
Premium gold packaging becomes more interesting when several visual levels are combined.
For example, a project may use:
This creates more depth than simply printing the entire tin one solid metallic colour.
Other colour directions can include black and gold, burgundy and gold, navy and gold, dark green and antique gold, or silver combined with darker spirits branding.
For a highly decorative exterior, we often recommend keeping the interior relatively restrained.
The inside lid may remain gold, silver or clear-coated without additional artwork. The bottle and fitted insert then become the main focus when the case is opened.
This contrast works particularly well when the exterior uses heavy embossing or detailed vineyard artwork.
The metal structure can remain the same while the graphic direction changes significantly between beverage categories.
Wine packaging often works with vineyards, château illustrations, grapevines, vintage dates and estate heritage.
Whisky and whiskey tin boxes can use distillery architecture, barrels, crests, darker colours and bronze or antique-gold effects.
Vodka bottle tins often suit cleaner geometric layouts, silver effects, dark blue, black or highly minimal premium branding.
Brandy and cognac presentation tins can use formal crests, ornate embossing and deep red or gold colour systems.
This means the page can naturally cover wine tin box, whisky bottle tin box, vodka bottle tin packaging, liquor gift tin and spirits bottle presentation box without creating a separate near-duplicate page for every type of alcohol.
The rectangular structure provides two different retail presentation options.
Horizontal display highlights the long lid artwork and makes the package feel like a traditional presentation case.

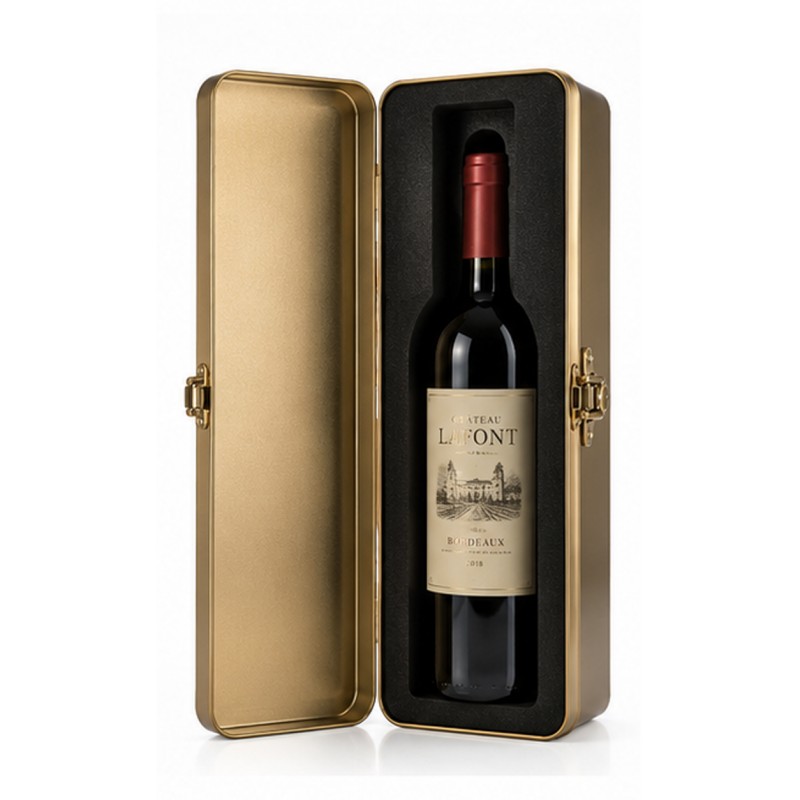

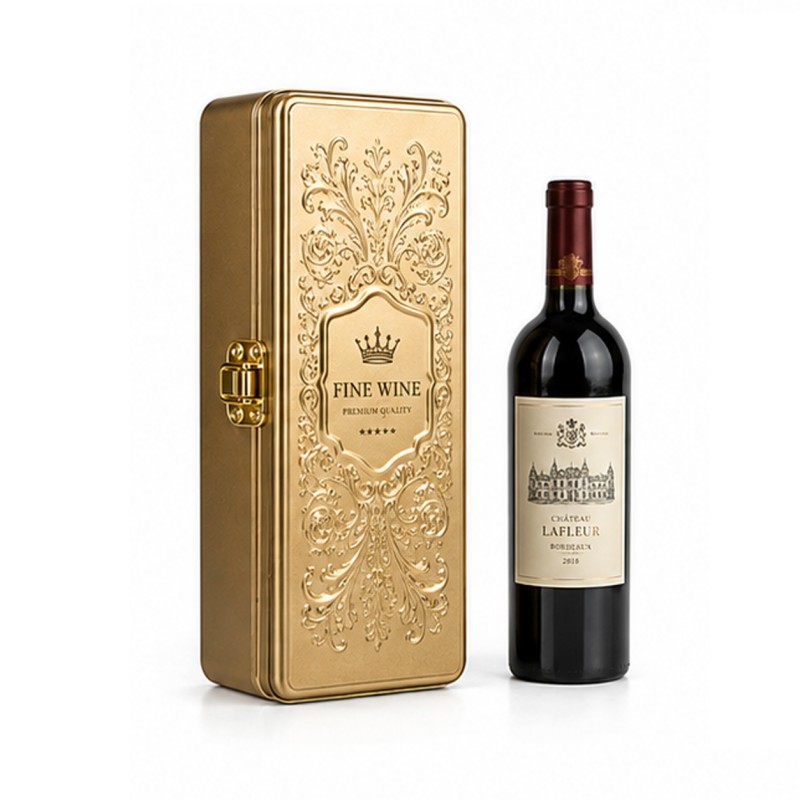

Vertical display can give the tin stronger shelf presence and makes the bottle package resemble a collectible gift case.
If the product is intended to stand vertically, the base geometry, bottle weight and insert position should be checked during sample development to ensure adequate stability.
The clasp and hinge hardware create several protruding areas that should be protected during bulk shipment.
Typical export packing may include:
The finished carton arrangement should prevent one clasp from pressing directly against the printed surface of the next tin.
| Project Requirement | Rectangular Hinged Tin | Cylindrical Bottle Tin |
| Premium opening presentation | Excellent — lid remains attached and bottle stays displayed | More straightforward removable-lid opening |
| Large embossed artwork | Large flat lid provides more design space | Artwork mainly wraps around the cylindrical body |
| Unusual bottle shape | More flexible with a custom insert | Best suited to bottles close to the cylinder diameter |
| Compact outer volume | More internal space around the bottle | Generally more space-efficient |
| Clasp closure | Can be incorporated | Normally unnecessary |
| Gift-case appearance | Strong | More like a premium bottle tube |
For this structure, artwork should not be finalised before the hinge and clasp positions are known.
We recommend confirming:
Important logos, fine lettering and key artwork should remain away from hardware attachment points and deeply formed edges.
No. This product uses a hinged lid that remains attached to the body when opened.
The structure uses separated formed hinge points along the rear edge. Corresponding metal hinge tabs or openings are aligned and joined using a steel wire or metal pin. It is not intended to resemble a long external piano hinge.
The clasp uses two corresponding sections. One part is fixed to the lid and the matching latch section is fixed to the body. They engage when the tin is closed and separate when the lid is opened.
Yes. Horizontal bottle presentation is the standard arrangement for this type of rectangular case and works well with a fitted foam or EVA insert.
Yes. The insert can be redesigned around different whisky, whiskey, vodka, brandy, rum, gin and other spirits bottles provided the outer dimensions are suitable.
Yes. The broad lid is suitable for embossed logos, vineyard artwork, decorative frames and other premium designs. Embossing should remain clear of the hinge, clasp and critical forming zones.
No. The clasp keeps the lid closed but does not create a hermetic seal. The beverage remains protected by the original bottle and closure.
Many rectangular bottle tins can be displayed vertically, but stability should be checked with the actual bottle and insert because the weight distribution changes when the package is upright.
The standard MOQ is 5,000 pieces per design. New tooling, specialised inserts or multiple artwork versions may affect the final production arrangement.
